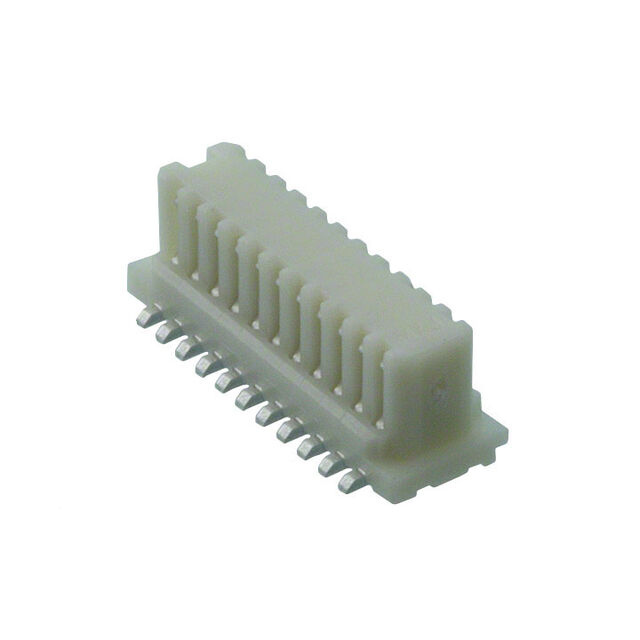

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
0524652271 | |
|---|---|
DigiKey Part Number | 900-0524652271TR-ND - Tape & Reel (TR) 900-0524652271CT-ND - Cut Tape (CT) 900-0524652271DKR-ND - Digi-Reel® |
Manufacturer | |
Manufacturer Product Number | 0524652271 |
Description | CONN RCPT 22POS SMD TIN |
Manufacturer Standard Lead Time | 17 Weeks |
Customer Reference | |
Detailed Description | 22 Position Connector Receptacle, Center Strip Contacts Surface Mount Tin |
Datasheet | Datasheet |
EDA/CAD Models | 0524652271 Models |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Manufacturer | Molex | |
Series | ||
Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Part Status | Active | |
Connector Type | Receptacle, Center Strip Contacts | |
Number of Positions | 22 | |
Pitch | 0.031" (0.80mm) | |
Number of Rows | 2 | |
Mounting Type | Surface Mount | |
Features | - | |
Contact Finish | Tin | |
Contact Finish Thickness | 120.0µin (3.05µm) | |
Mated Stacking Heights | 4.5mm, 5.65mm, 7mm | |
Height Above Board | 0.140" (3.55mm) | |
Base Product Number |
0 In Stock
Check Lead Time
Request Stock Notification
Quantity
All prices are in USD
Cut Tape (CT) & Digi-Reel®
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | $2.32000 | $2.32 |
| 10 | $1.75700 | $17.57 |
| 25 | $1.58880 | $39.72 |
| 50 | $1.47880 | $73.94 |
| 100 | $1.38160 | $138.16 |
| 250 | $1.27044 | $317.61 |
| 500 | $1.19782 | $598.91 |
Tape & Reel (TR)
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1,000 | $0.99620 | $996.20 |
