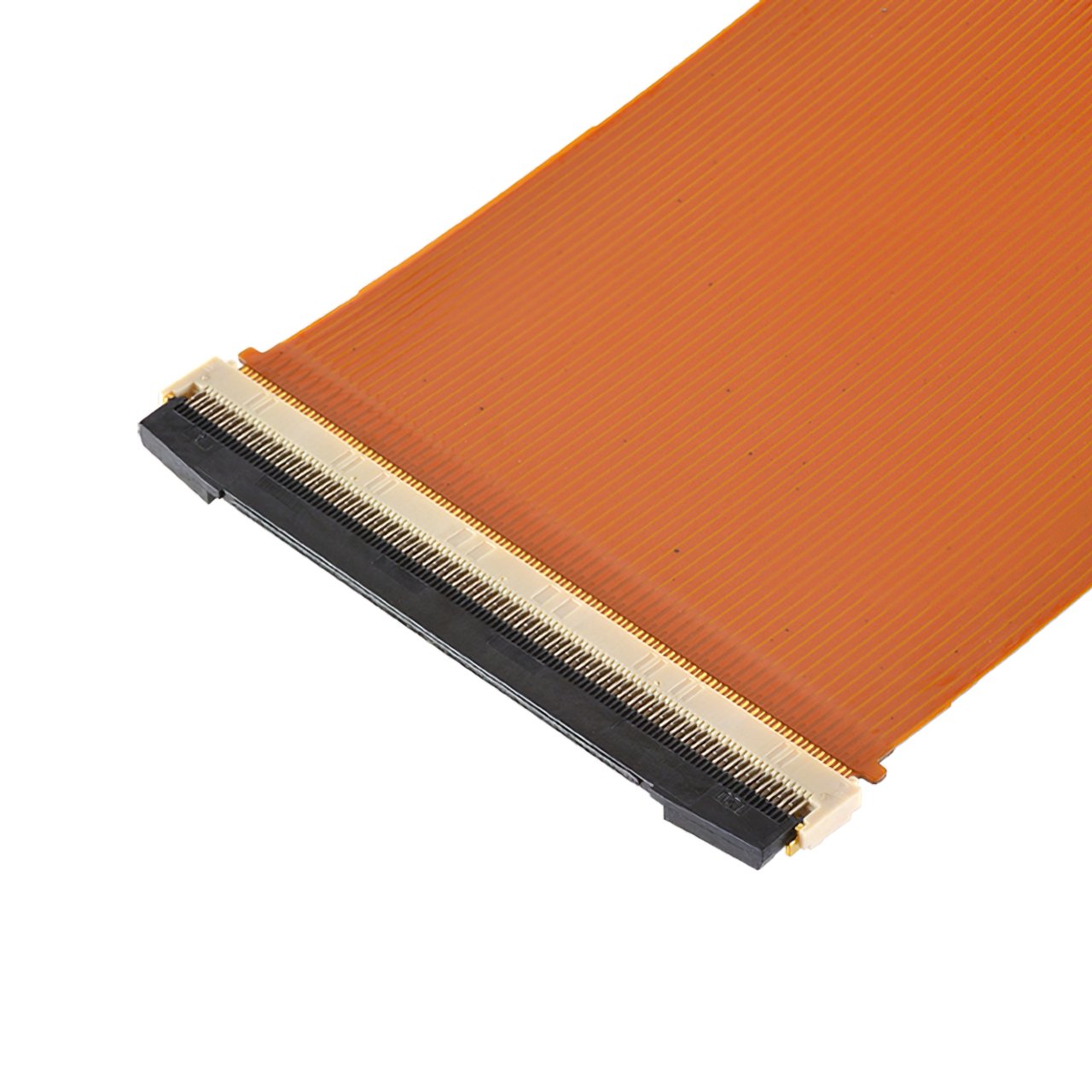

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
2203631200 | |
|---|---|
DigiKey Part Number | 23-2203631200TR-ND - Tape & Reel (TR) 23-2203631200CT-ND - Cut Tape (CT) |
Manufacturer | |
Manufacturer Product Number | 2203631200 |
Description | 0.4 FPC E/O ZIF EMBT PKG 120CKT |
Manufacturer Standard Lead Time | 14 Weeks |
Customer Reference | |
Detailed Description | 120 Position FFC, FPC Connector Contacts, Bottom 0.016" (0.40mm) Surface Mount, Right Angle |
Datasheet | Datasheet |
EDA/CAD Models | 2203631200 Models |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Manufacturer | Molex | |
Series | ||
Packaging | Tape & Reel (TR) Cut Tape (CT) | |
Part Status | Active | |
Flat Flex Type | FFC, FPC | |
Mounting Type | Surface Mount, Right Angle | |
Connector/Contact Type | Contacts, Bottom | |
Number of Positions | 120 | |
Pitch | 0.016" (0.40mm) | |
Termination | Solder | |
FFC, FCB Thickness | 0.10mm | |
Height Above Board | 0.079" (2.00mm) | |
Locking Feature | Flip Lock | |
Cable End Type | Tabbed, Tapered | |
Contact Material | Phosphor Bronze | |
Contact Finish | Gold | |
Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | |
Actuator Material | Polyamide (PA), Nylon | |
Features | Board Guide, Zero Insertion Force (ZIF) | |
Voltage Rating | 50V | |
Operating Temperature | -40°C ~ 105°C | |
Material Flammability Rating | UL94 V-0 | |
Current Rating (Amps) | 0.5A | |
Contact Finish Thickness | 2.00µin (0.051µm) | |
Housing Color | Black | |
Actuator Color | Natural | |
Mating Cycles | 20 |
0 In Stock
Check Lead Time
Request Stock Notification
Quantity
All prices are in USD
Cut Tape (CT)
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | $5.38000 | $5.38 |
| 10 | $4.56900 | $45.69 |
| 25 | $4.28280 | $107.07 |
| 50 | $4.07820 | $203.91 |
| 100 | $3.88350 | $388.35 |
| 250 | $3.64140 | $910.35 |
Tape & Reel (TR)
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 2,000 | $3.33667 | $6,673.34 |
Tariff Status: Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
