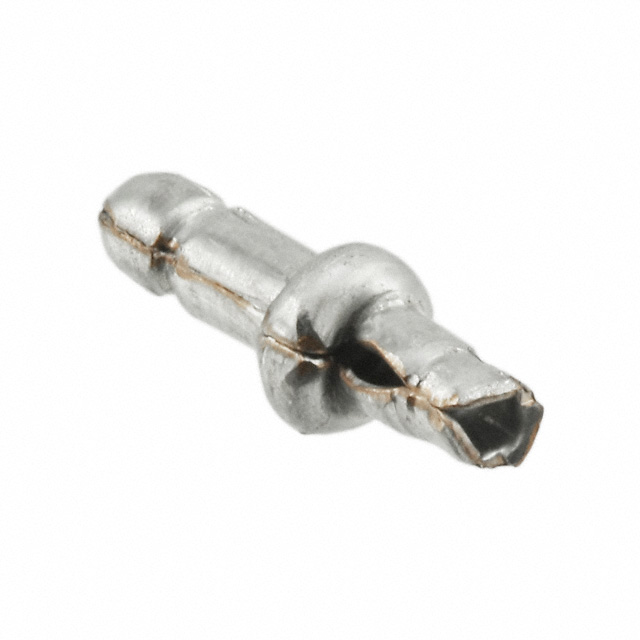

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

640394-1
DigiKey Part Number	640394-1-ND
Manufacturer	TE Connectivity AMP Connectors
Manufacturer Product Number	640394-1
Description	CONN PC PIN CIRC 0.058DIA TIN
Customer Reference
Detailed Description	Single Post Terminal Connector Through Hole Tin 0.058" (1.47mm) Dia
Datasheet	Datasheet
EDA/CAD Models	640394-1 Models

Product Attributes

Type	Description	Select All
Category	Connectors, Interconnects Terminals PC Pin, Single Post Connectors
Manufacturer	TE Connectivity AMP Connectors
Series	-
Packaging	Bulk
Part Status	Obsolete
Terminal Type	Single Post
Terminal Style	Flanged
Pin Size - Above Flange	0.058" (1.47mm) Dia
Pin Size - Below Flange	-
Length - Above Flange	0.160" (4.06mm)
Length - Below Flange	0.100" (2.54mm)
Length - Overall	0.310" (7.87mm)
Flange Diameter	0.090" (2.29mm)
Mounting Hole Diameter	0.055" ~ 0.061" (1.40mm ~ 1.55mm)
Mounting Type	Through Hole
Termination	Clinch Fit
Insulation	Non-Insulated
Board Thickness	0.062" (1.57mm)
Contact Material	Phosphor Bronze
Contact Finish	Tin
Contact Finish Thickness	-
Material - Insulation	-
Insulation Color	-
Base Product Number	640394
